Fusion® BB100 Black Box

N/P: 010-01517-01 Categorías: , ,

Q2,780.00

Disponible para reservar, con garantía local tiempo estimado de entrega 10 días

Disponible unicamente para pre orden, para más información comunicate a nuestro telefono 2331-4432

COMPACT BLACK BOX ENTERTAINMENT SOLUTION

There is no need to compromise on quality audio entertainment due to limited helm space with the value packed Fusion MS-BB100 compact black box entertainment solution.

Compact form factor allows for easy installation on your boat.

Control the BB100 using the included IPX7 wired remote control.

Built-in Class-AB amplifier delivers efficiency with reduced distortion.

Multi-Zone technology gives you control of two separate audio zones.

Control your music from a compatible multifunction display (MFD), smart device or Garmin watch.

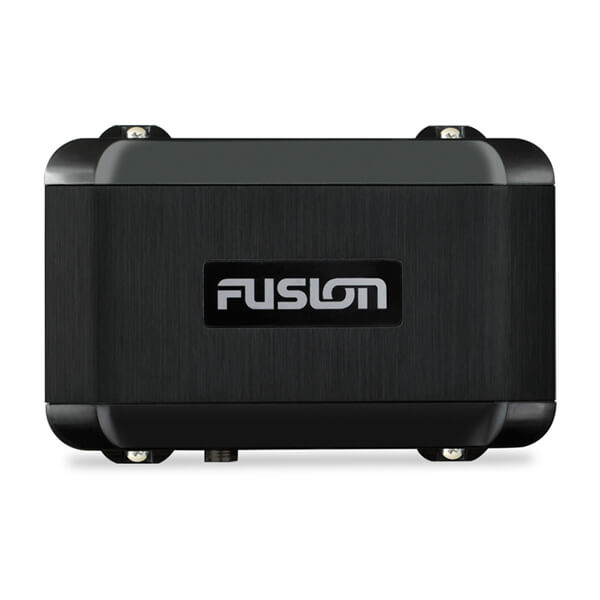

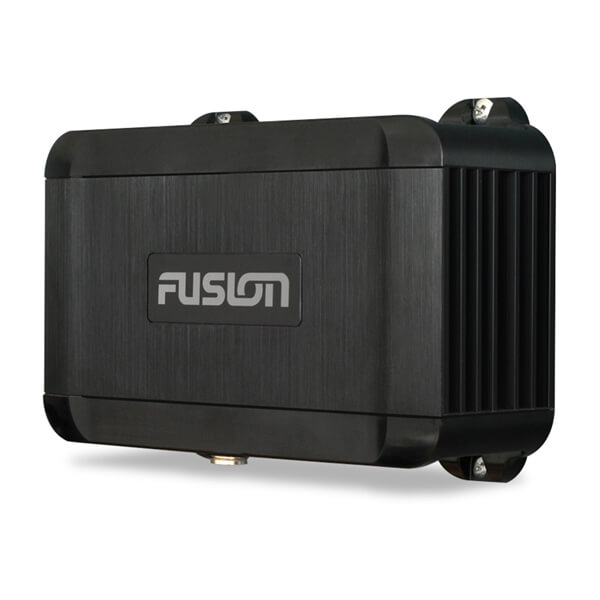

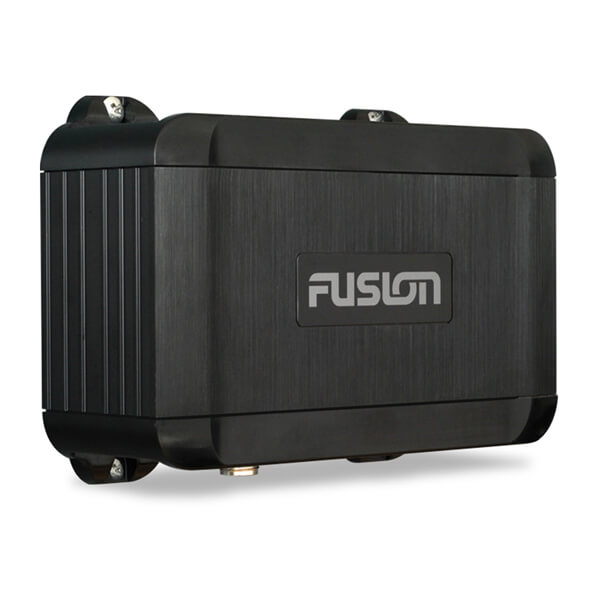

BLACK BOX DESIGN

Designed to save space at the helm, the compact design of the MS-BB100 allows it to be mounted in out-of-way places such as storage lockers, inside helm consoles and other concealed compartments.

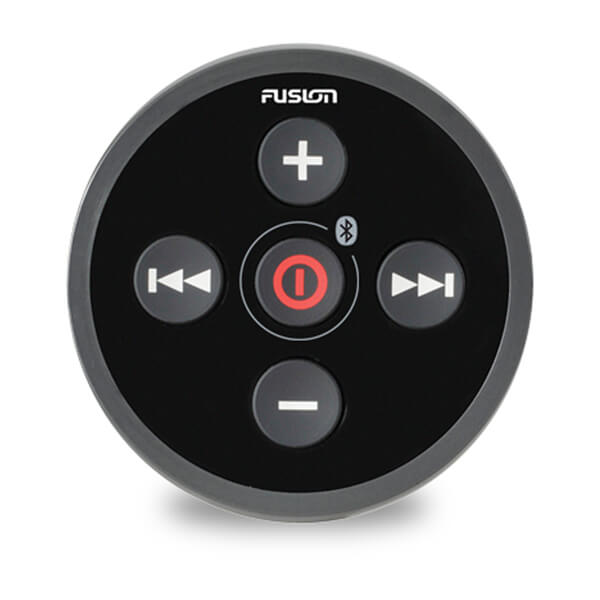

IPX7 WIRED REMOTE CONTROL

An IPX7 rated wired remote control is included in the box for you to control the MS-BB100. You can mount the wired remote with a conventional flush finish or integrate it into the helm for a premium flat finish.

Enjoy a variety of source options.

MULTIPLE SOURCE OPTIONS

Take advantage of the many source options available, including BLUETOOTH® technology, AM/FM radio, AUX and USB connections.

Enjoy entertainment control with the Fusion-Link™ app.

LEARN MORE

The Bluetooth word mark and logos are registered trademarks owned by Bluetooth SIG, Inc. and any use of such marks by Garmin is under license.

General

Physical dimensions Black Box (HxWxD): 2.63″ x 6.10″ x 3.70″ (60 x 155 x 94 mm)
Remote (Diameter x Depth): 2.56″ x 2.13″ (65 x 54 mm)
Water rating Black Box: IPX3 (when properly installed)
Remote: IPX7 (front panel only, when properly installed)
Power input 10.8-16 VDC
Operating temperature range 32° to 122° F (0° to 50° C)
Current (max.) 15 A
Fuse 15 A
NMEA 2000 LEN 1 (50 mA)
Bluetooth wireless range Up to 30 ft (10 m)
ANT wireless range Up to 10 ft (3 m)
Wireless frequencies/protocols Bluetooth 2.4 GHz @ +1.9 dBm nominal
ANT 2.4 GHz @ +1.9 dBm nominal
Compass-safe distance 5.9″ (150 mm)

Stereo Features

Built-in amplifier Class-AB
Peak power 200 W
Rated power output (4 Ohm) 26 W rms x 4 @ 14.4 V input < 10% THD
Fusion-Link™ control yes (MFD, smartphone and Garmin watch)
Multi-Zone™ technology 2 zones
Bluetooth wireless technology
ANT wireless technology
DAB+ ready yes (requires DAB100A antenna module)
NRX remote compatibility
Software updates USB
Warranty 1 year

Sources

Sources AM/FM/Bluetooth/USB audio/iPhone/iPod/AUX x1/AOA/
DAB+ ready (available in Europe and Australia only)

Connectivity

Auxiliary input 1 RCA input (AUX)
NMEA 2000 1 port
USB 2.0 1 port
AM/FM radio 1 Motorola antenna connector port
Speaker 2 connections (2 zone amplified)
RCA Pre-out
(left, right and subwoofer)
2 zones (requires external amplification)
Line out 2 (1 x L + R per zone, requires external amplification)
Subwoofer out 1 x mono output (requires external amplification)
  • MS-BB100 media black box
  • IPX7 wired remote control
  • One remote control mounting nut (M56)
  • One remote control mounting gasket
  • Four 8-gauge, mounting screws
  • Power and speaker wiring harness
  • Auxiliary-in, line-out, and subwoofer-out wiring harness
  • 6 ft (2 meter) NMEA 2000® drop cable
  • Documentation
