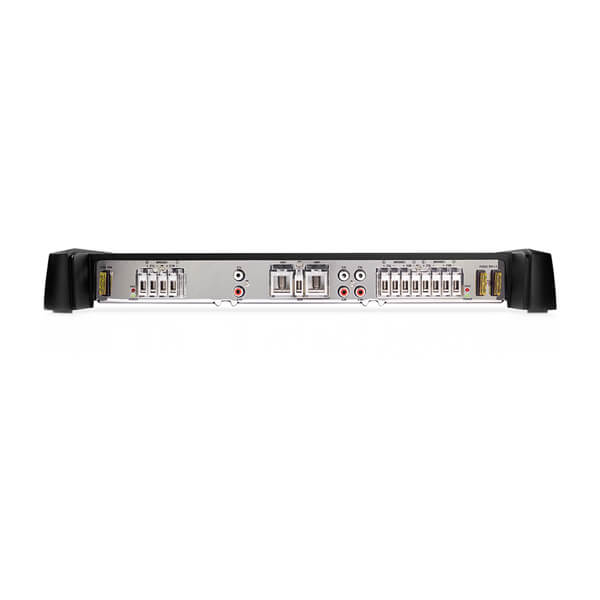

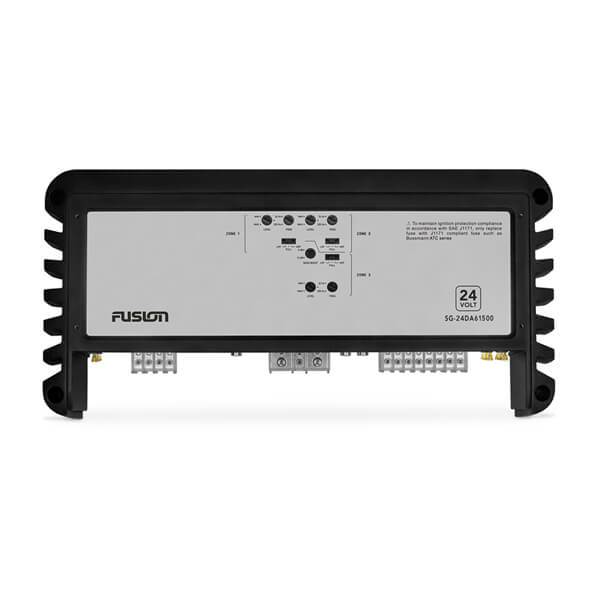

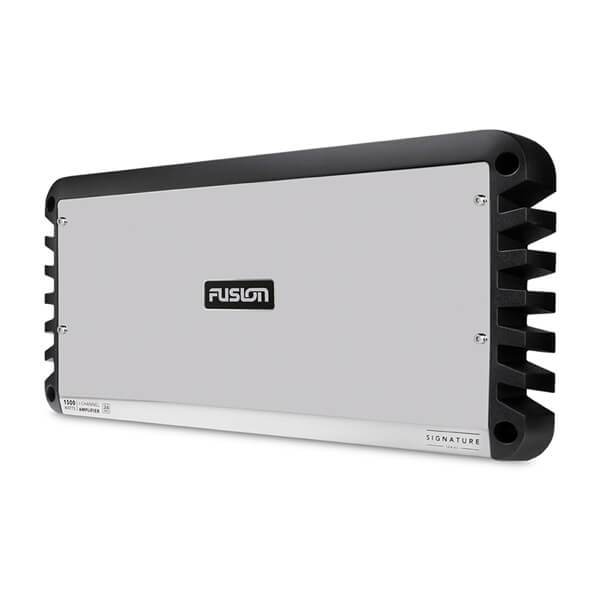

Fusion® Signature Series Marine Amplifiers, 24-Volt Signature Series 6 Channel 1500-Watt Marine Amplifier

EXPERIENCE THE POWER OF MUSIC

Purpose-built for the marine environment, the Signature Series marine amplifiers feature some of the most impressive protection from the environment available — delivering a Signature performance out on the water.

N/P: 010-02556-00 Categorías: ,

Q6,235.00

Disponible unicamente para pre orden, para más información comunicate a nuestro telefono 2331-4432

General

Physical dimensions (LxWxH) Monoblock/ and 4/5 channels: 11.81″ x 8.27″ x 1.97″ (300 x 210 x 50 mm)
6/8 channels and 24-Volt 6 channel: 16.54″ x 8.27″ x 2.24″ (420 x 210 x 57 mm)
Amplifier class D
Peak power (Watts) Monoblock: 2250 W
4 channel: 1400 W
5 channel: 1600 W
6 channel/24-Volt 6 channel: 1500 W
8 channel: 2000 W
Total rated power output – 4 Ohm (Watts) Monoblock: 500 W RMS x 1 @ 14.4 V input – 4 Ohm < 1% THD
4 channel: 150 W RMS x 4 @ 14.4 V input – 4 Ohm < 1% THD
5 channel: 80 W RMS x 4 + 250 W RMS x 1 @ 14.4 V input – 4 Ohm < 1% THD
6 channel: 100 W RMS x 6 @ 14.4 V input – 4 Ohm < 1% THD
8 channel: 100 W RMS x 8 @ 14.4 V input – 4 Ohm < 1% THD
24-Volt 6 channel: 100 W RMS x 6 @ 28.8 V input – 4 Ohm < 1% THD
Total rated power output – 2 Ohm (Watts) Monoblock: 850 W RMS x 1 @ 14.4 V input – 2 Ohm < 1% THD
4 channel: 220 W RMS x 4 @ 14.4 V input – 2 Ohm < 1% THD
5 channel: 130 W RMS x 4 + 330 W RMS x 1 @ 14.4 V input – 2 Ohm < 1% THD
6 channel: 140 W RMS x 6 @ 14.4 V input – 2 Ohm < 1% THD
8 channel: 140 W RMS x 8 @ 14.4 V input – 2 Ohm < 1% THD
24-Volt 6 channel: 140 W RMS x 6 @ 28.8 V input – 2 Ohm < 1% THD
Total rated power output (Watts) Monoblock: 1100 W RMS x 1 @ 14.4 V input – 1 Ohm < 1% THD
4 channel: 440 W RMS x 2 @ 14.4 V input – 4 Ohm Bridged < 1% THD
5 channel: 250 W RMS x 2 @ 14.4 V input – 4 Ohm Bridged < 1% THD + 250 W RMS x 1 @ 14.4 V input – 4 Ohm < 1% THD
6 channel: 280 W RMS x 3 @ 14.4 V input – 4 Ohm Bridged < 1% THD
8 channel: 280 W RMS x 4 @ 14.4 V input – 4 Ohm Bridged < 1% THD
24-Volt 6 channel: 280 W RMS x 3 @ 28.8 V input – 4 Ohm Bridged < 1% THD
Frequency response Monoblock Amplifier: 10 Hz – 320 Hz (-3 dB, dB @ 4 Ohm rated power) – subwoofer only
4/5 channels: 10 Hz – 50 kHz (-3dB, dB @ 4 Ohm rated power)
6/8 channels: 10 Hz – 40 kHz (-3dB, dB @ 4 Ohm rated power)
6/8 channels and 24-Volt 6 channel: 10 Hz – 40 kHz (-3dB, dB @ 4 Ohm rated power)
Input sensitivity 0.3 V – 8 V RMS (user adjustable)
Input impedance Monoblock/5 channel: 4k Ohm nominal
4/6/8 channels and 24-Volt 6 channel: 7k Ohm nominal
High-pass/low-pass full range filter yes (user selectable)
HP variable crossover frequency Monoblock: 10 Hz – 80 Hz (subwoofer)
4/5/6/8 channels and 24-Volt 6 channel: 32 Hz – 320 Hz
LP variable crossover frequency Monoblock: 32 Hz – 320 Hz (subwoofer)
4/5/6/8 channels and 24-Volt 6 channel: 32 Hz – 320 Hz
Bass boost 0 dB – 9 dB, user adjustable (zone 3 only)
Operating voltage Monoblock and 4/5/6/8 channels: 10.8 V – 16 V DC
24-Volt 6 channel: 21.6 V – 32 V DC
Current consumption (StandBy) Monoblock and 4/5/6/8 channels: < 1 mA @ 14.4 V input
24-Volt 6 channel: < 1 mA @ 28.8 V input
Current consumption (Idle) Monoblock and 4/5/6/8 channels: < 2.5 A @ 14.4 V input
24-Volt 6 channel: < 1.25 A @ 28.8 V input
Current consumption (Max) Monoblock: 120 A
4/5 channels: 80 A
6 channel: 75 A
8 channel: 100 A
24-Volt 6 channel: 35 A
Fuse rating Monoblock/6 channel: 3 x 40 A ATC blade-type (SAE J1171 compliant)
4/5 channels: 2 x 40 A ATC blade-type (SAE J1171 compliant)
8 channel: 4 x 40 A ATC blade-type (SAE J1171 compliant)
24-Volt 6 channel: 3 x 20 A ATC blade-type (SAE J1171 compliant)
Operating temperature range 32° to 122° F (0° to 50° C)
Warranty 3 years
  • One amplifier (based on what you select)
  • Four 8-gauge, self-tapping screws
  • 3 mm hex key (for the top cover and power terminals)
  • 2.5 mm hex key (for the speaker terminals)
  • Polishing cloth
  • Spare J1171 compliant 40 A blade-type fuses (not included with 24-Volt Signature Series 6 Channel 1500-Watt amplifier)
  • Spare J1171 compliant 20 A blade-type fuses (only included with 24-Volt Signature Series 6 Channel 1500-Watt amplifier)
